Product Details
＋| Product Attribute | Attribute Value |
|---|---|
| Approvals | IEC / EN 61000-4-2 ; IEC / EN 61000-4-2 ; IEC / EN 61000-4-3 ; IEC / EN 61000-4-4, level 3 ; IEC / EN 61000-4-5 ; IEC/EN 61000-4-6, Level 3 ; IEC/EN 61000-4-11 ; EN55022 / CISPR 22 ; IEC61000-3-2 ; IEC / EN 61000-3-3 ; ISO 7779 |
| Configuration | Enclosed |
| Input Voltage | 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Mounting Type | Cage Mount |
| Number of Outputs | 2 Output |
| Operation | PFC |
| Output Current | 167A@12V, 2A@12V |
| Output Power | 2028 W |
| Output Voltage | 12 VDC, 12 VDC |
| Primary Type | AC-DC |
| Series | |
| Special Features | Standby Output ; Hot Swappable ; Parallelable ; I2C Interface ; PMBus ; Input Under Voltage Protection ; Over Voltage Protection ; Under Voltage Protection ; Over Current Protection ; Remote Sense ; Over Temperature Protection |
| Type | Front End |
Overview

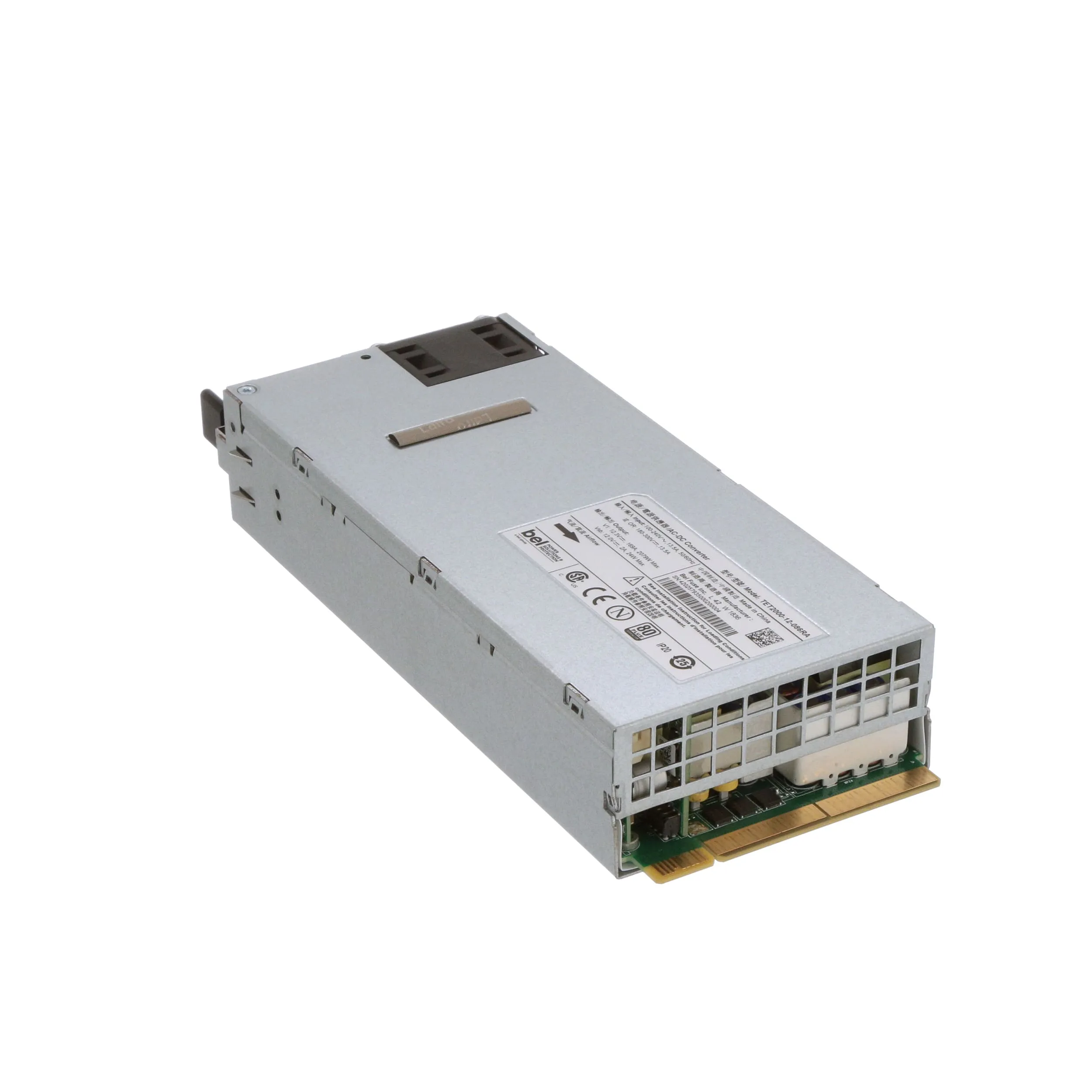

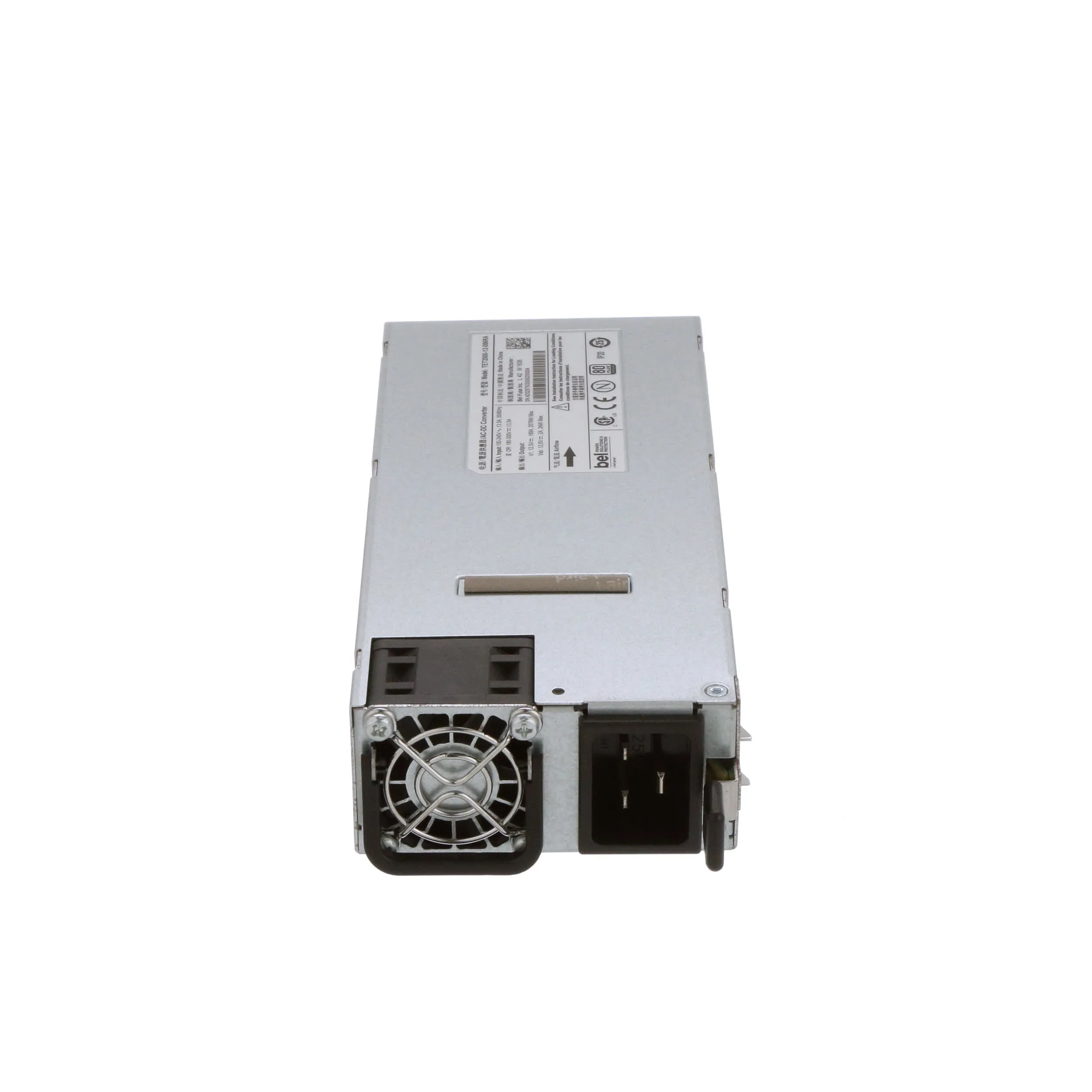

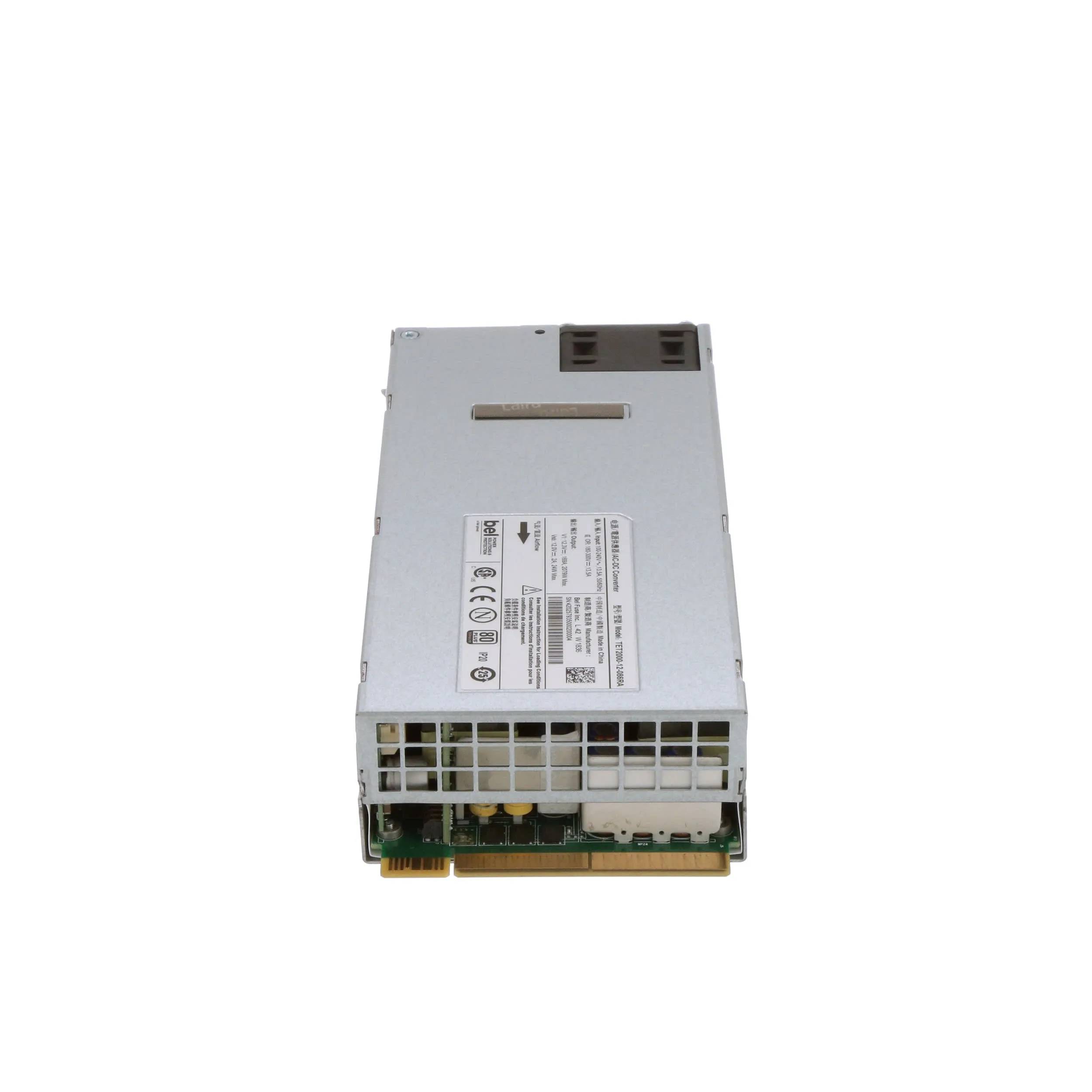

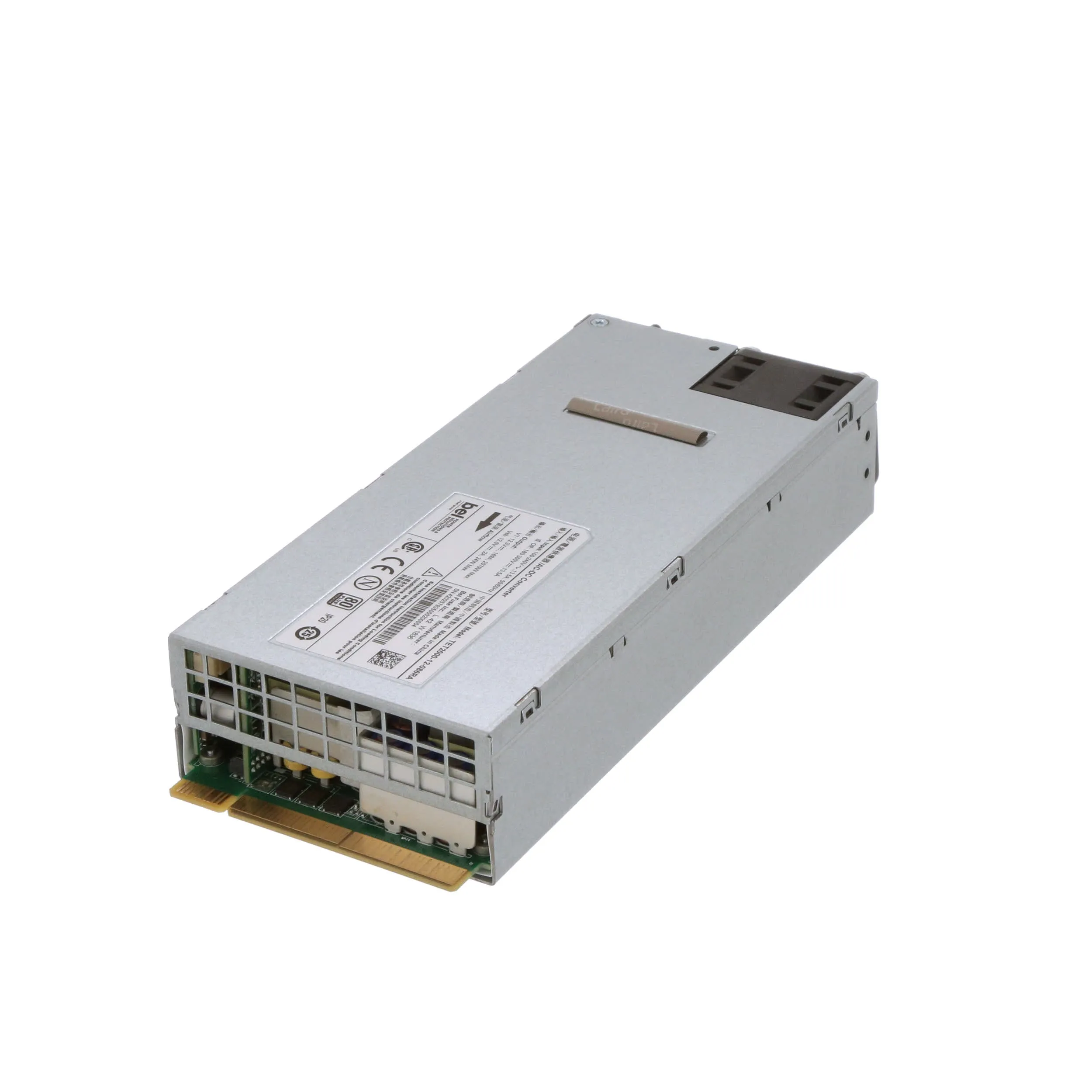

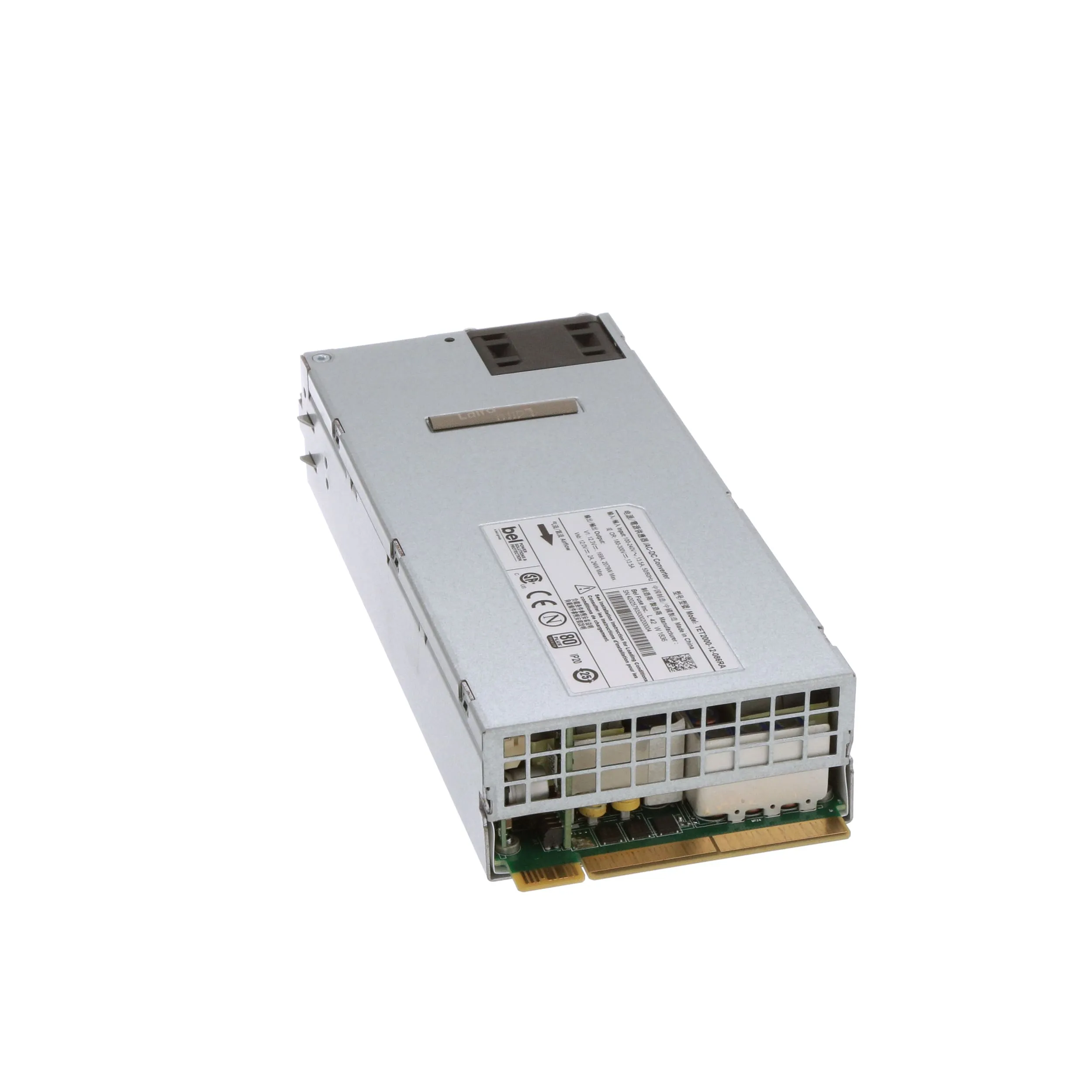

The TET2000-12-086 Series is a 2100 Watt AC-DC power-factor corrected (PFC) and DC/DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The TET2000-12-086 Series meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
The TET2000-12-086 Series is a 2100 Watt AC-DC power-factor corrected (PFC) and DC/DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The TET2000-12-086 Series meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
