Product Details
＋| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | QUINT-PS-100-240AC/24DC/10/EX |
| Configuration | Enclosed |
| Current Rating | 10 A |
| Frequency | 45 to 65 Hz |
| Height | 5.118" (130mm) |
| Input Voltage | 100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Maximum Operating Temperature | 70 °C (Ambient) |
| Minimum Operating Temperature | -25 °C (Ambient) |

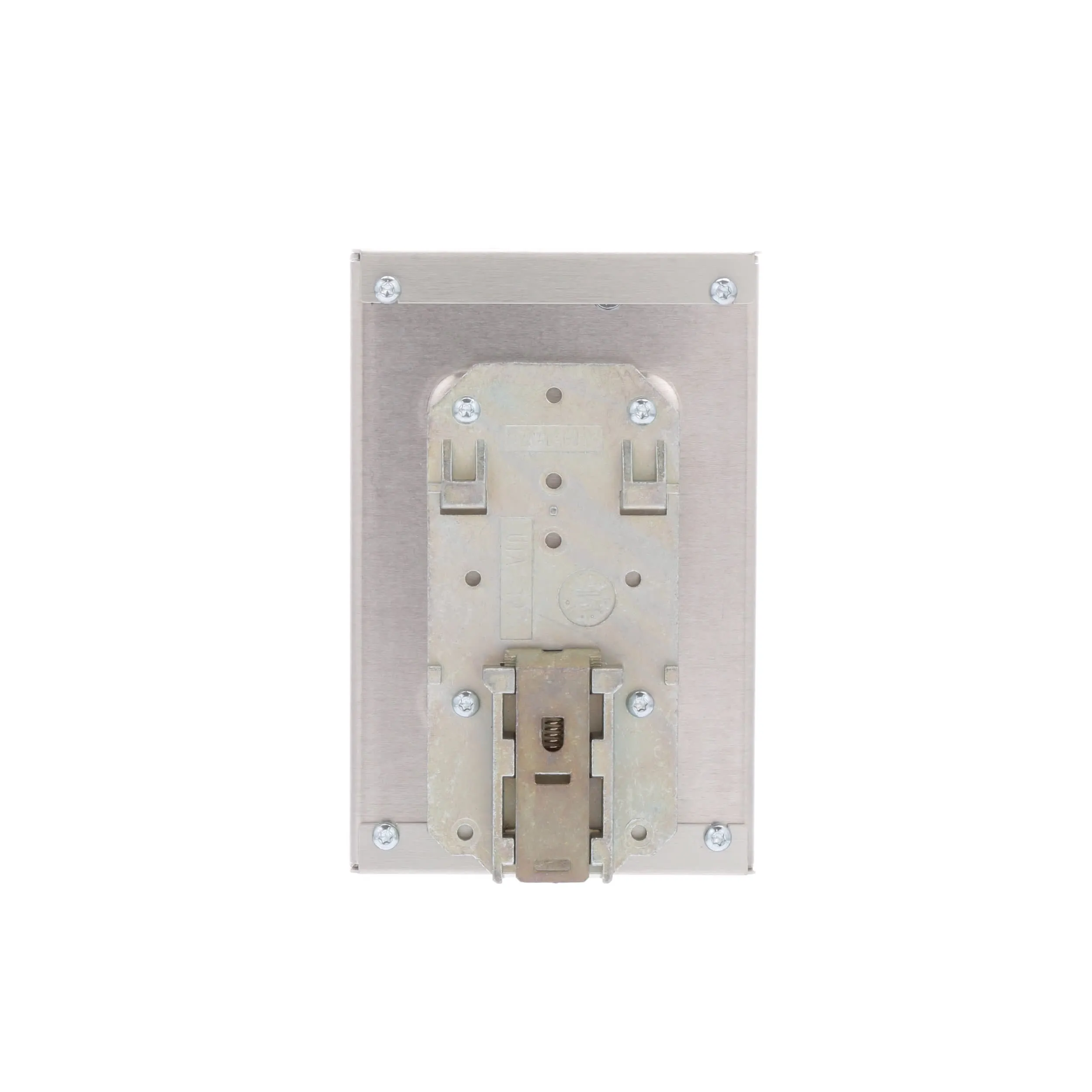

| Mounting Type | DIN Rail Mount |
| Number of Outputs | 1 Output |
| Operation | Switching |
| Output Current | 10 A |
| Output Power | 240 W |
| Output Voltage | 24 VDC |
| Primary Type | AC-DC |
| Product Header | Primary Switched Mode Power Supply |
| Series | |
| Type | Industrial |
| UPC Code | 4017918943486 |
| Voltage Rating | 85 to 264 VAC |
| Voltage, Input Range | 85-264 VAC |
| Width | 3.346" (85mm) |
Overview

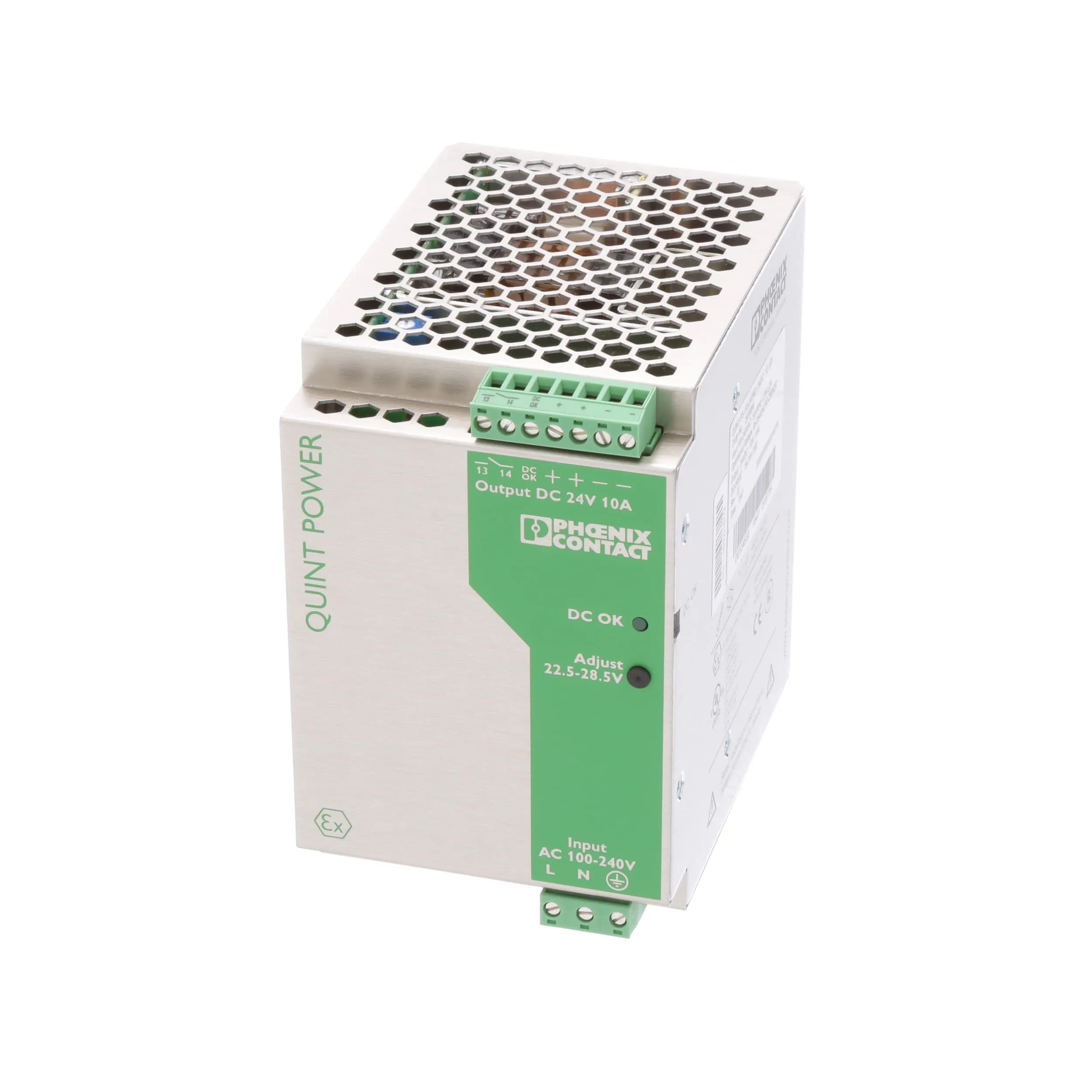

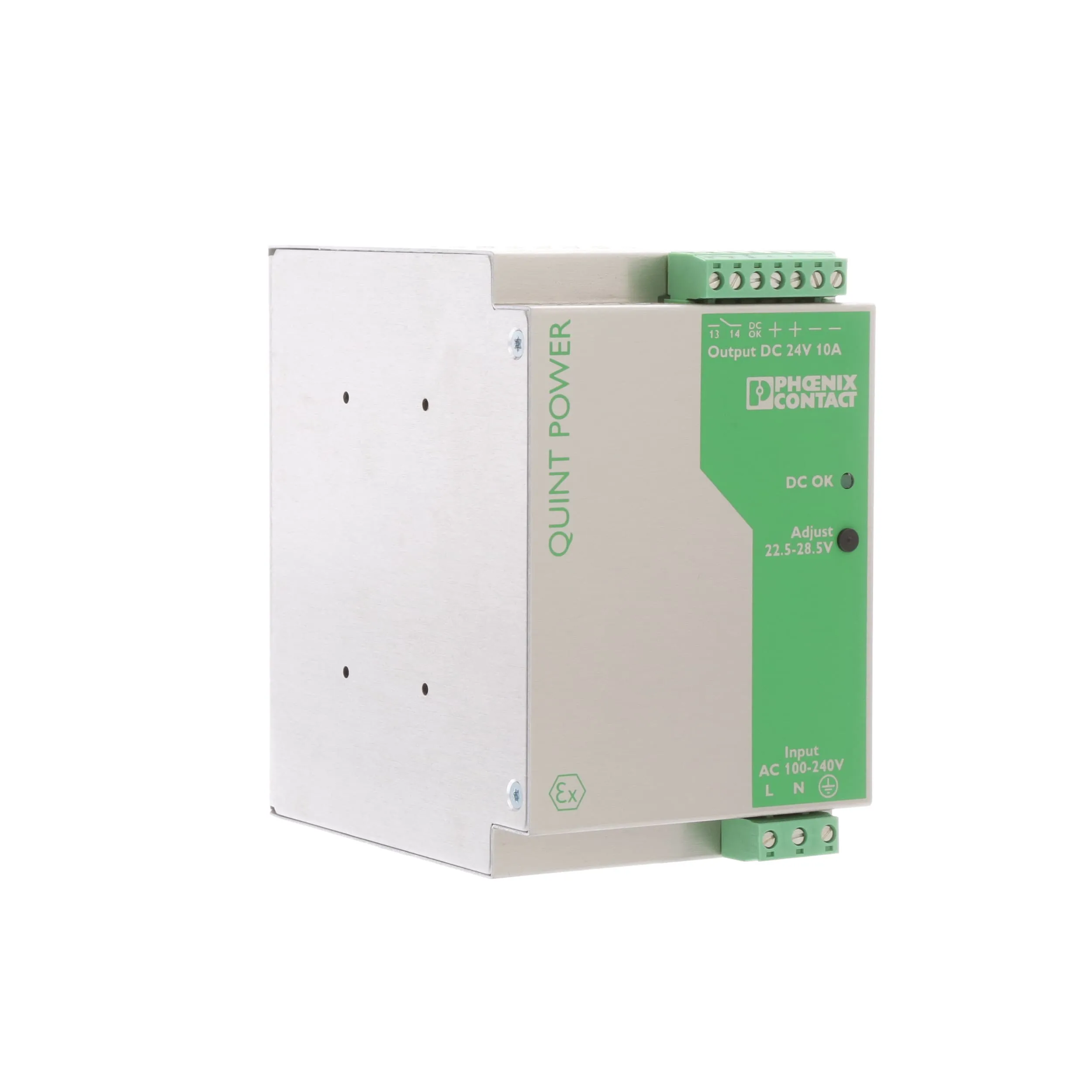

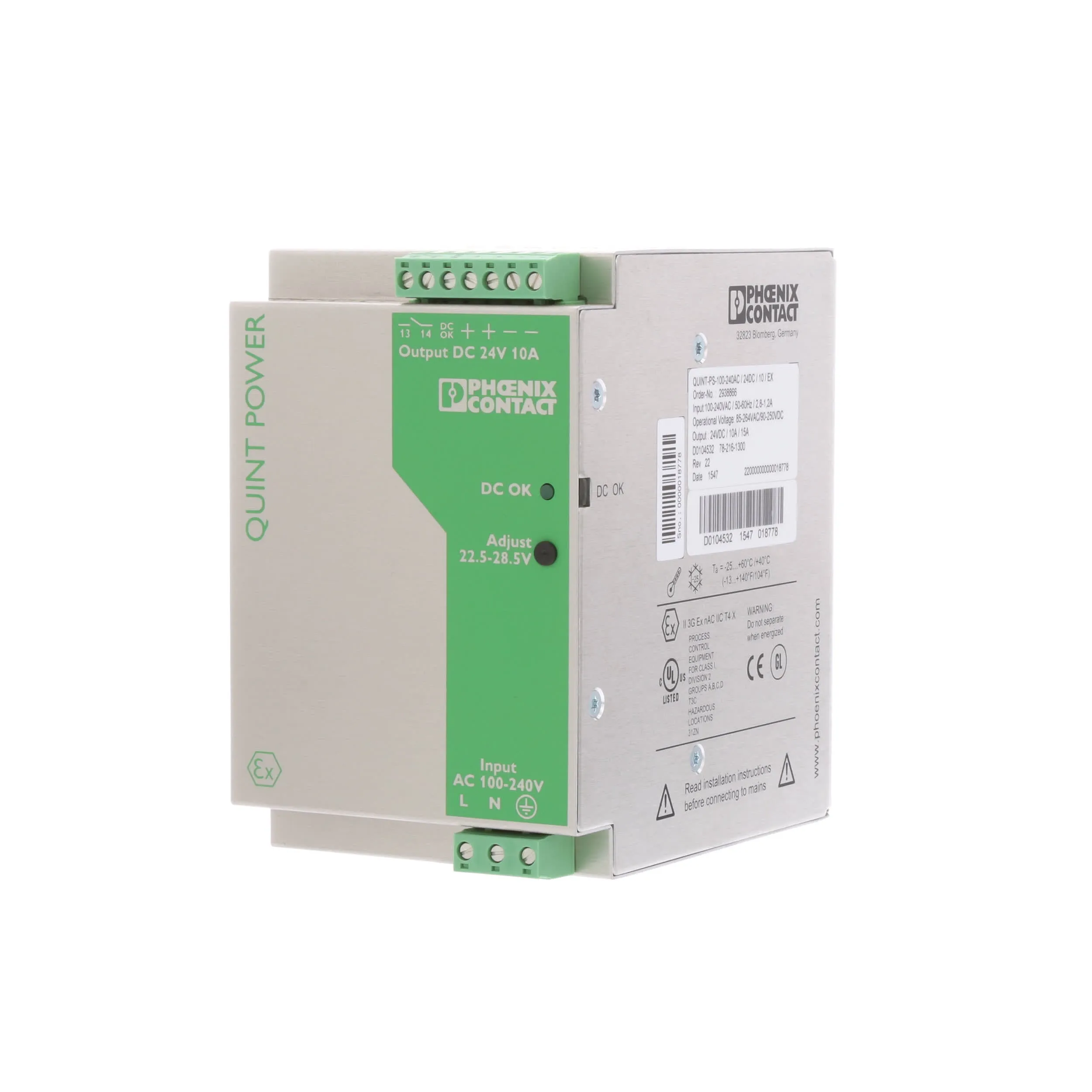

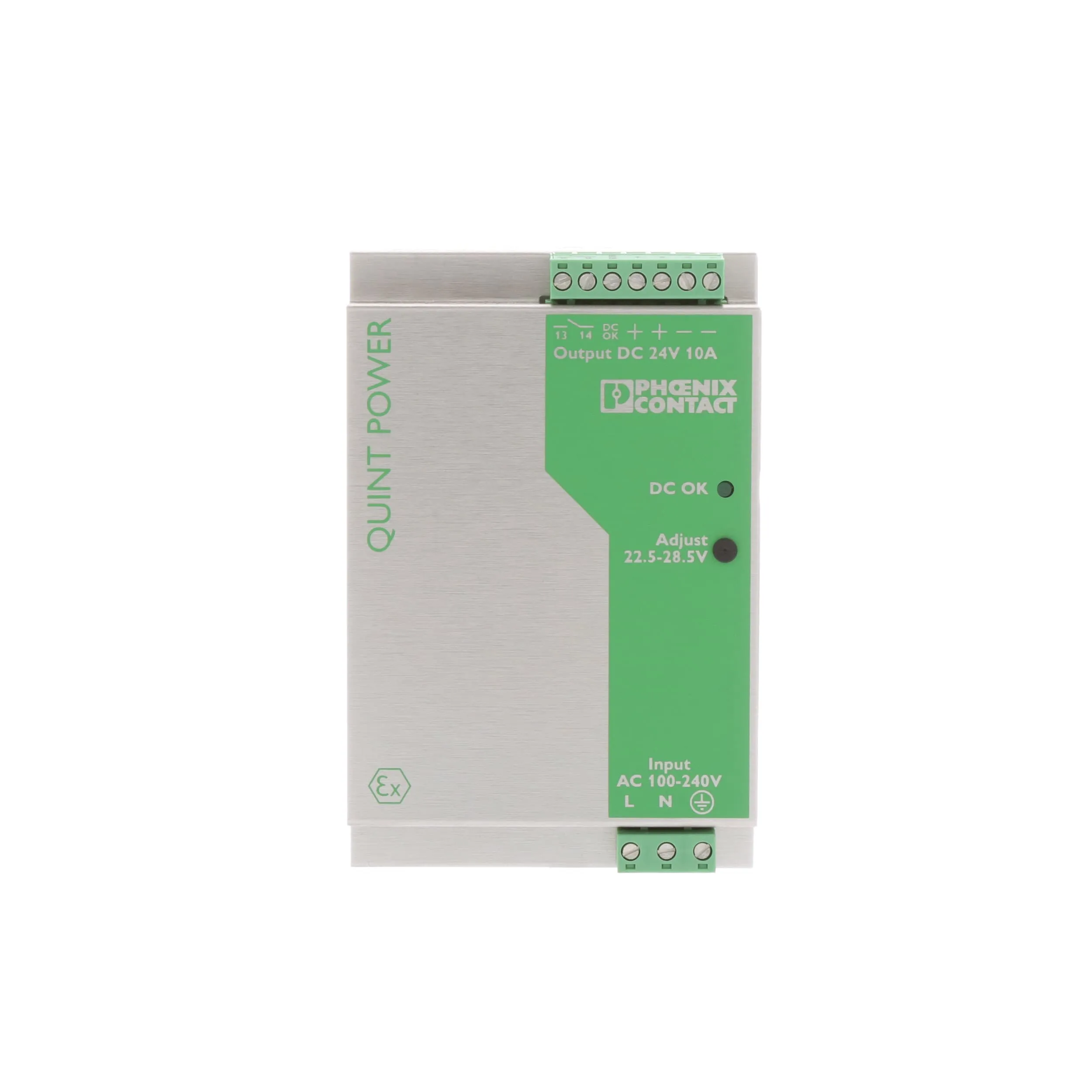

Phoenix Contact QUINT POWER Series - Single-Phase Primary-Switched Power Supply Unit:
For extreme operating conditions, use the ideally matched combination of PLUGTRAB SEC surge protection device and the powerful QUINT POWER power supply of the fourth generation. However, should your fourth-generation QUINT POWER become damaged in the first five years following purchase despite the use of this combination, you will receive a free replacement .
The Power Boost power reserve easily starts loads with high inrush currents and ensures that fuses are reliably tripped. Preventive function monitoring diagnoses impermissible operating states and minimizes downtimes in your system. Remote monitoring is provided by an active transistor switching output and a floating relay contact. All devices are idling-proof and short-circuit-proof, and are available with a regulated and adjustable output voltage of 12, 24, and 48 V DC with output currents of 2.5, 5, 10, 20, 30, and 40 A. Power supply units for use in Ex zone 2, uninterruptible solutions, AS-i power supply units, and a QUINT diode complete this comprehensive product range.
Features:
With its wide-range input, single and three-phase versions, and international approval package, this solution is unrivalled
