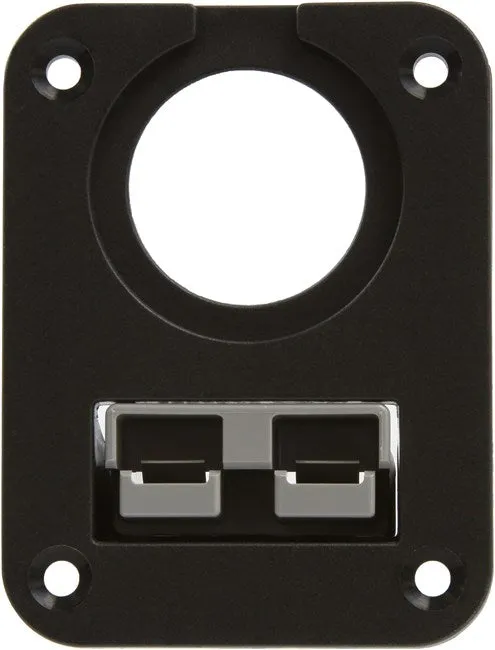

Anderson Power SB50 Series Connector flush mounting to your dashboard, panel or chassis. Ideal for fixed mounted application for Anderson Power SB50 series connectors with one standard 1-1/8" panel mounting hole. Includes (1) Gray SB50 housing, (2) #8 gauge contacts, mounting plate and hardware. Can be mounted in a vertical or horizontal position.

• Compatibility: Mounting Plate designed for Anderson Power SB50 Series connector & One Standard 1-1/8" Panel Mount Hole
• Maximum Voltage 600V AC or DC (for SB50 connector)
• Maximum Amperage Up to 120A maximum, 50A continuous (for SB50 connector)
• Rear Housing Depth 1-3/4" (not including wiring)

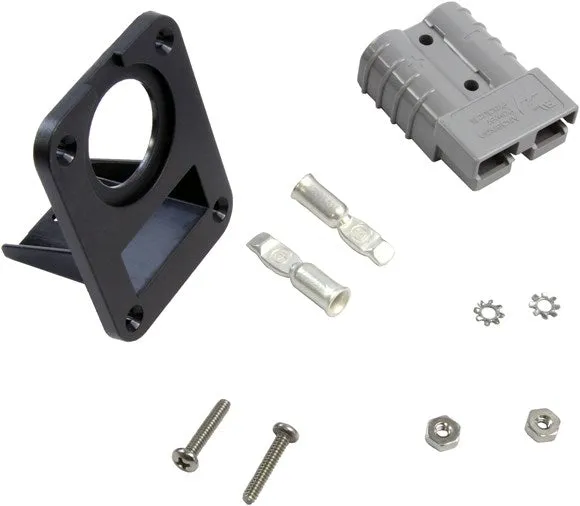

• Includes: (1) Black Mounting Plate, (1) Anderson SB50 Gray Housing, (2) #8 gauge contacts and (2) SB50 mounting bolts, nuts and lock washers.
• Customers may purchase alternate colored SB50 housings and change connector colors as well as different contacts sizes as needed.
• Optional: Purchased separately (1) 1-1/8" panel mount products, PLUG-SB50 Rigid Protective Plug/Cover with Lanyard.
