Name: Powerwerx PanelPole1, Single Panel Mount Housing
SKU: 608674

Product Details

＋

Powerwerx PanelPole1, Panel Mount Housing for a Single Powerpole Connector with a Weather Tight Cover

Easily add Powerpole outputs to your dashboard, go-box, panel or chassis mount. Weather tight rubber cover protects connectors when not in use. High output capacity of up to 45A on each Powerpole. Includes (2) 30A contacts for 12-14 AWG wire. Fits 1-1/8" dia. hole. User removable retaining pin allows for changing Powerpole connectors to different colors if needed.

The only weather tight panel mount housing for 15/30/45 amp Powerpole connectors. Fits any 1-1/8" diameter hole and secures via a rear threaded nut. Easy add high power (up to 45A) output on your dashboard, go-box, panel or chassis.

High Output Panel Mount

Includes (1) Anderson Powerpole connector, rated up to 30 amps continuous operation. Optional 261G2-LPBK contacts allow operation up to 45 amps with 10 AWG wire size.

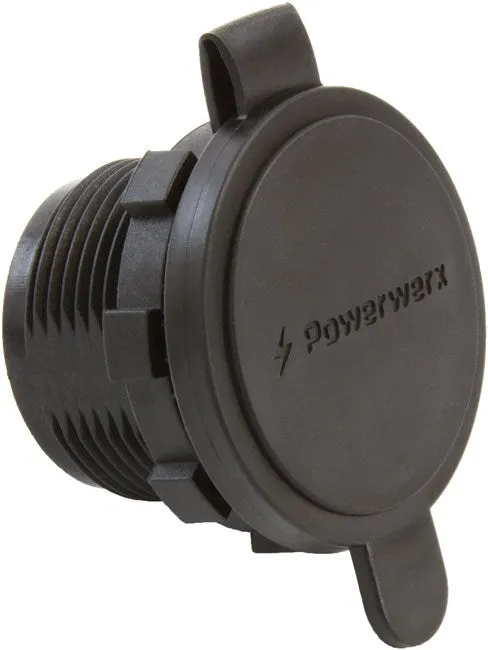

Protective Weather Tight Cover

Included weather tight protective cover which seals front mounted Powerpole connectors when not in use.

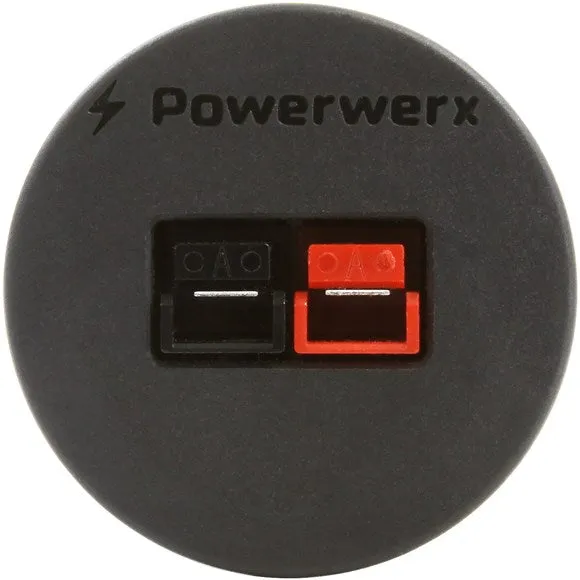

Anderson Powerpole Connectors

Compatible and designed to work with your favorite Anderson Powerpole 15, 30 & 45 amp connectors.

Standard Mounting Hole

1 1/8" standard panel mounting hole compatible. Ideal for go-box, dashboard or chassis mounting.

Tech Specs

Connections	Supplied with (1) Red/Black Powerpole Connector. Customer may purchase alternate colored housings and change colors as needed.
Compatibility	Mates with all 15, 30 & 45 amp Powerpole connectors
Maximum Voltage	58VDC
Maximum Amperage	Up to 45A each Powerpole connector (continuous). Includes: 30A Powerpole contacts for 12-14 AWG wire.
Mountable	1-1/8" diameter standard panel mounting hole.
Rear Housing Depth	7/8" (not including wiring)

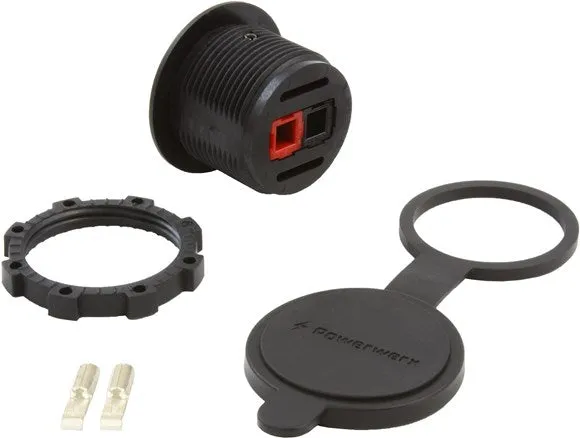

Includes	Includes: Single Body in Black color, (1) Powerpole Red/Black connector, (2) 30A Powerpole Contacts, (1) Retaining Pin (pre-installed), (1) Weather Tight Black Rubber Cover, (1) Threaded Locking Nut
