Product Details
＋| Product Attribute | Attribute Value |
|---|---|
| Configuration | Encapsulated |
| Input Voltage | 100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Mounting Type | DIN Rail Mount |
| Number of Outputs | 2 Output |
| Operation | Switching |
| Output Current | 1A@15V, 1A@-15V |
| Output Power | 30 W |
| Output Voltage | 15 VDC, -15 VDC |
| Primary Type | AC-DC |
| Series | |
| Special Features | IP20 ; 5 Year Warranty ; Over Current Protection ; Overload Protection ; Short Circuit Protection |
| Type | Industrial |
| Voltage, Input Range | 85-264 VAC |
Overview

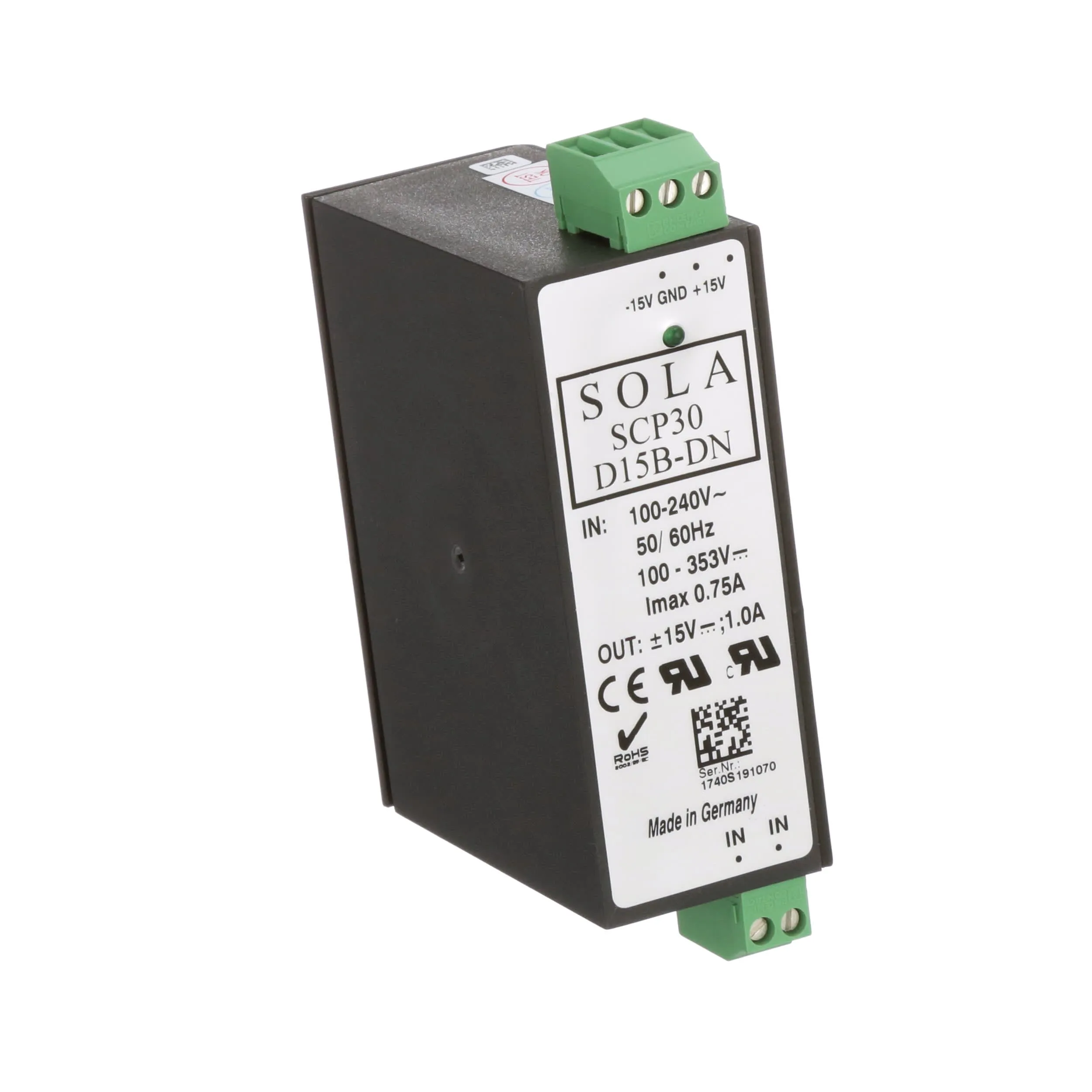

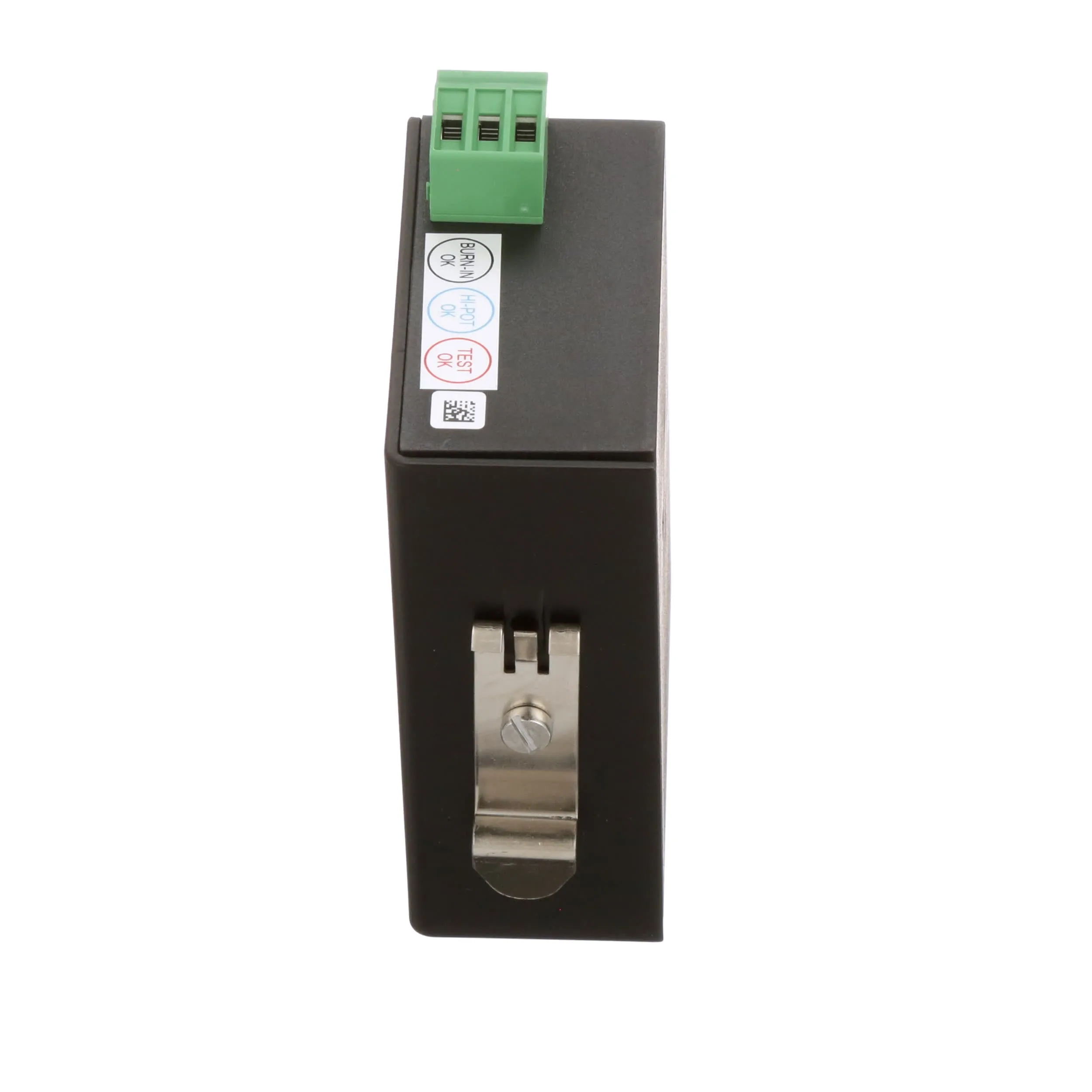

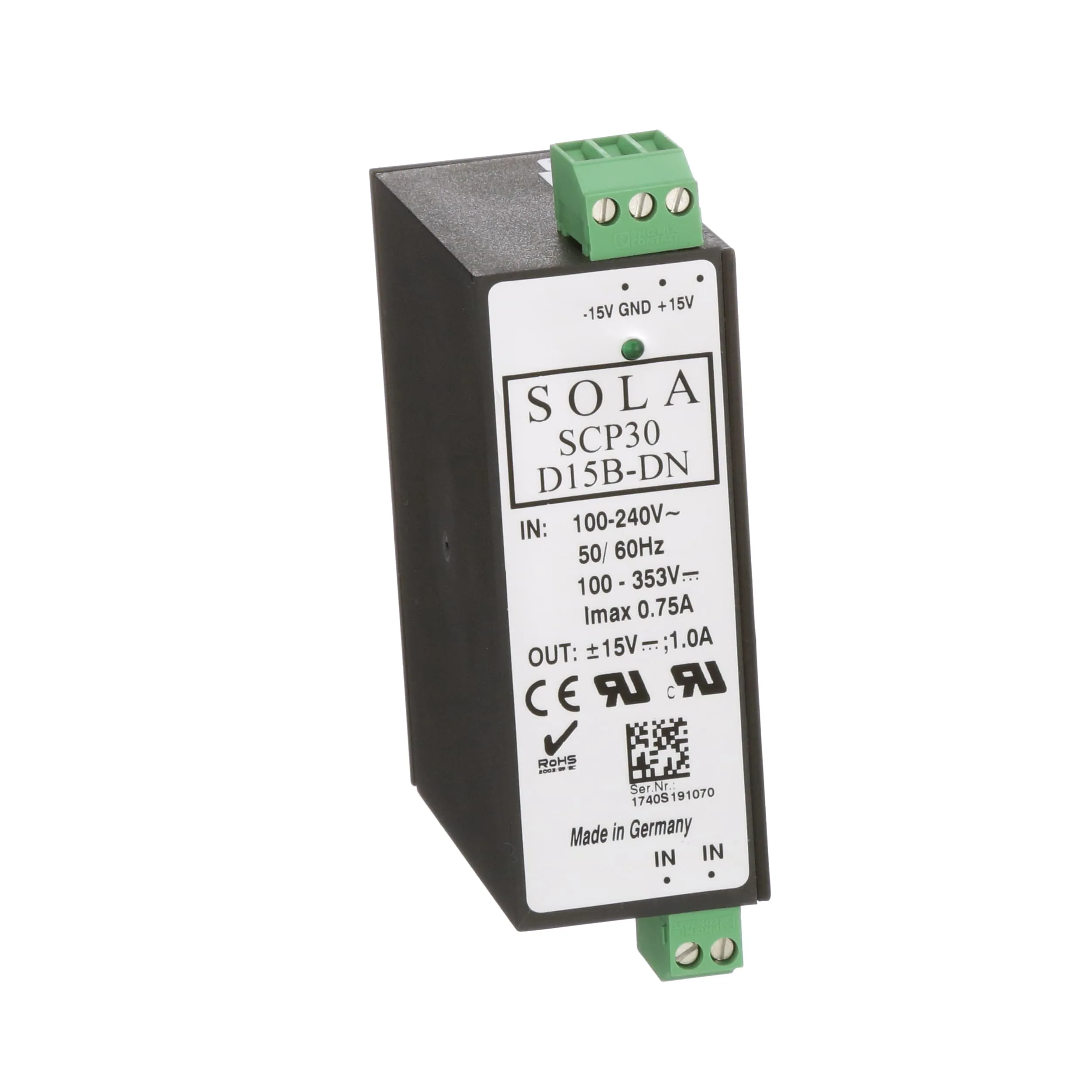

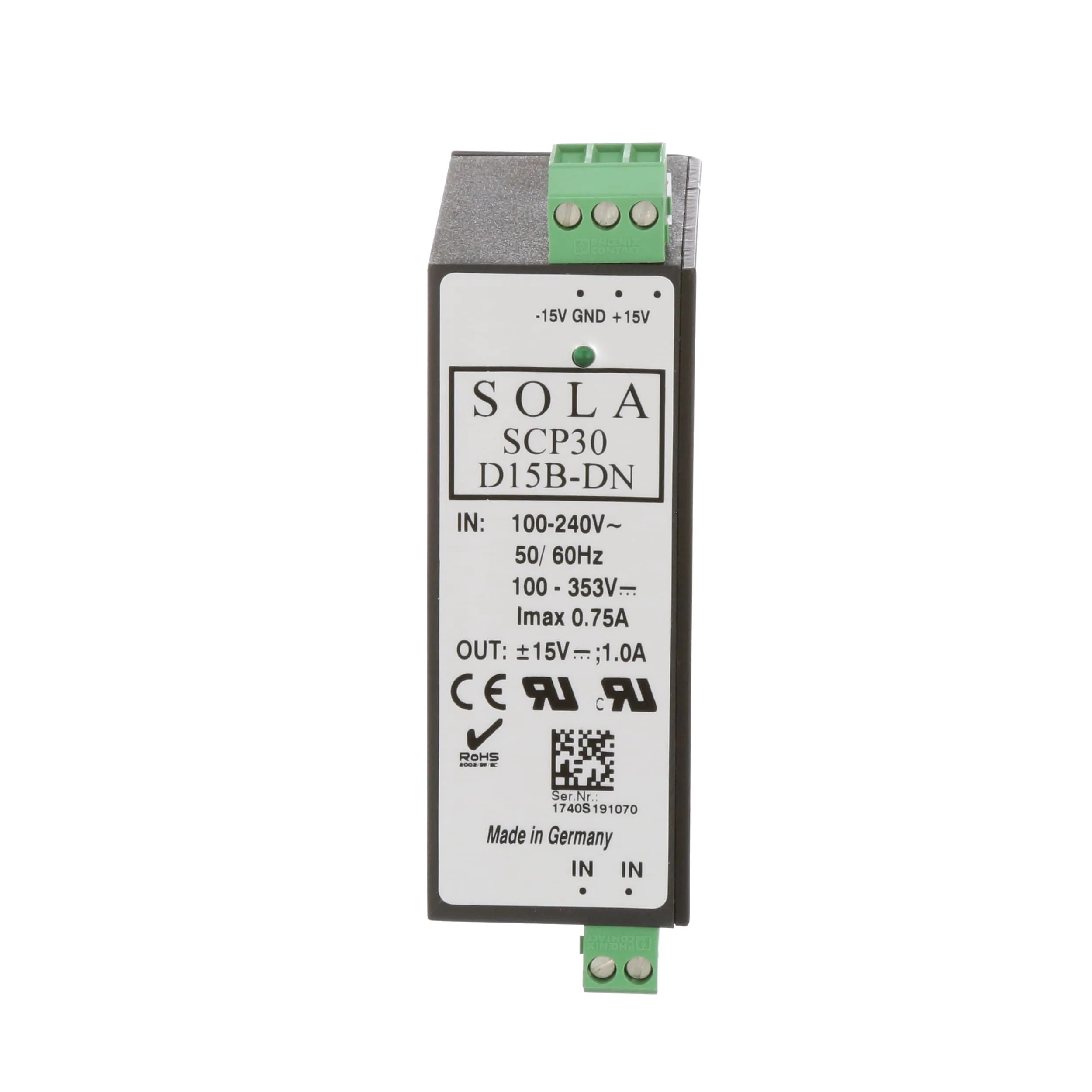

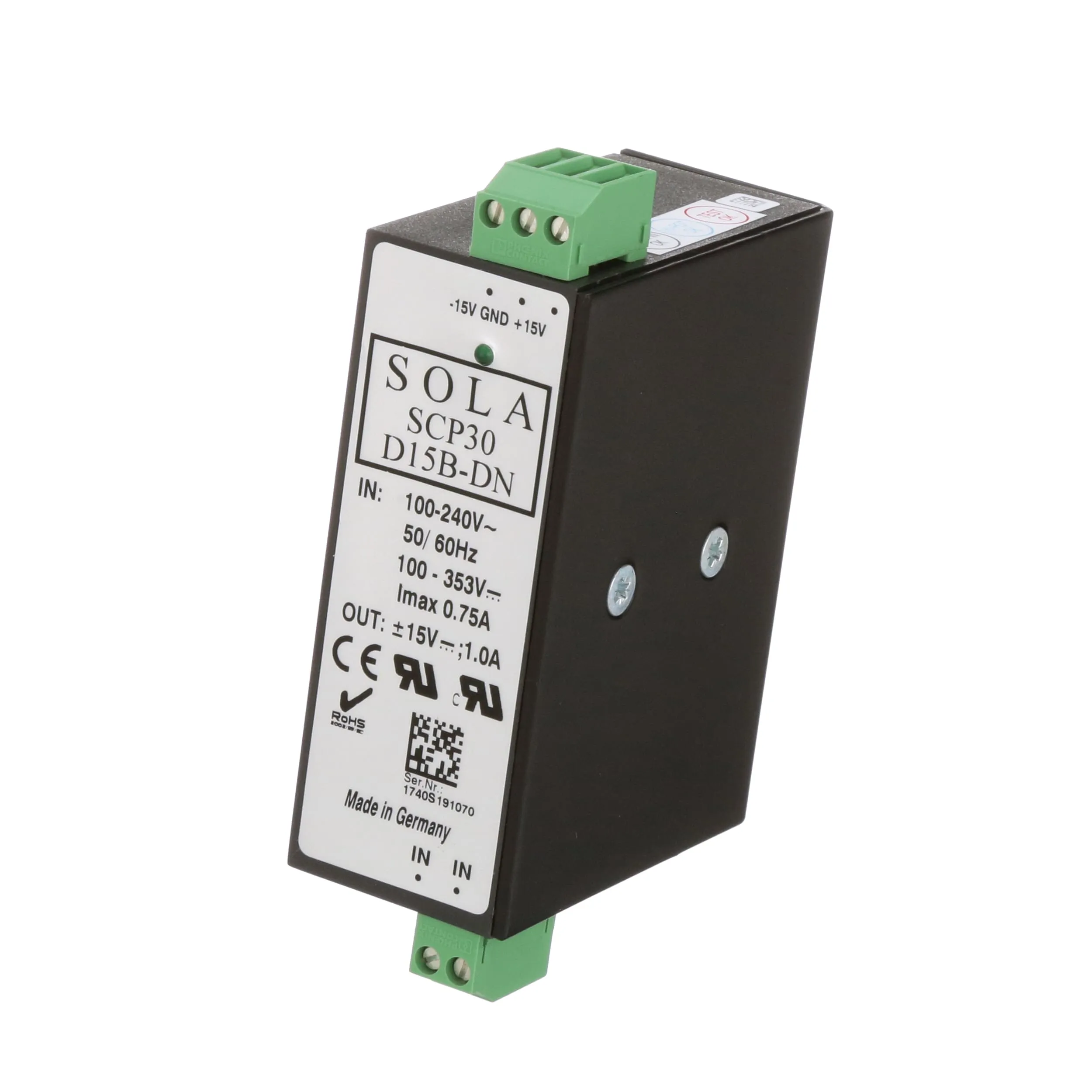

Sola HD SCP Series — Single, Dual and Triple | 50/60 Hz 30 Watt Switched Power Supplies:
SCP Series switchers are compact, rugged power supplies designed to power many of your industrial control and instrumentation devices and equipment, with high reliability and tight regulation through the most difficult factory floor conditions around the globe. These unique power supplies feature easy-to-install DIN Rail and chassis mounting. Terminations are easy to access. The encapsulated IP20 design and a wide range of voltages will support low power devices.
These switchers are compact, rugged power supplies designed to power many of your industrial control and instrumentation devices and equipment, with high reliability and tight regulation through the most difficult factory-floor conditions around the globe. “User friendly" applies to these unique power supplies that feature easy-to-install DIN Rail and chassis mounting. Terminations are also easy to access (AC and DC terminations are well separated) and simple to wire. Safety is another aspect where the SCP distinguishes itself. The encapsulated design meets IP20 specifications, and the wide range of voltages will reliably support almost any low-power device in your cabinet or system for years to come.
Features:
